200G QSFP28-DD SR8_JOINT OPTIC

200G QSFP28-DD SR8

200G QSFP28-DD SR8

200G QSFP28-DD SR8

200G QSFP28-DD SR8

Function

With NRZ modulation, the data rate per channel can reach up to 25.78 Gbps. It supports the 200GAUI-8 electrical interface, complies with the QSFP-DD MSA CMIS4.0 standard, and adheres to the IEEE 802.3bm standard. It requires a single 3.3V power supply.

Contact Us Online consultation

Introduction
Browsing History

With NRZ modulation, the data rate per channel can reach up to 25.78 Gbps. It supports the 200GAUI-8 electrical interface, complies with the QSFP-DD MSA CMIS4.0 standard, and adheres to the IEEE 802.3bm standard. It requires a single 3.3V power supply.

200G QSFP28-DD SR8

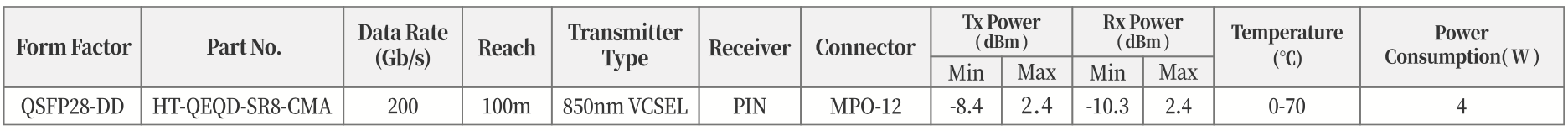

Specification parameters

Feature

Up to 25.78Gbps data rate per channel by NRZ modulation
Support 200GAUI-8 electrical interface
Compliant with QSFP-DD MSA CMIS4.0 compliant
Compliant with IEEE 802.3bm
Single +3.3V power supply

Application

Data centers and Cloud Networks
200G Interconnect Requirements
