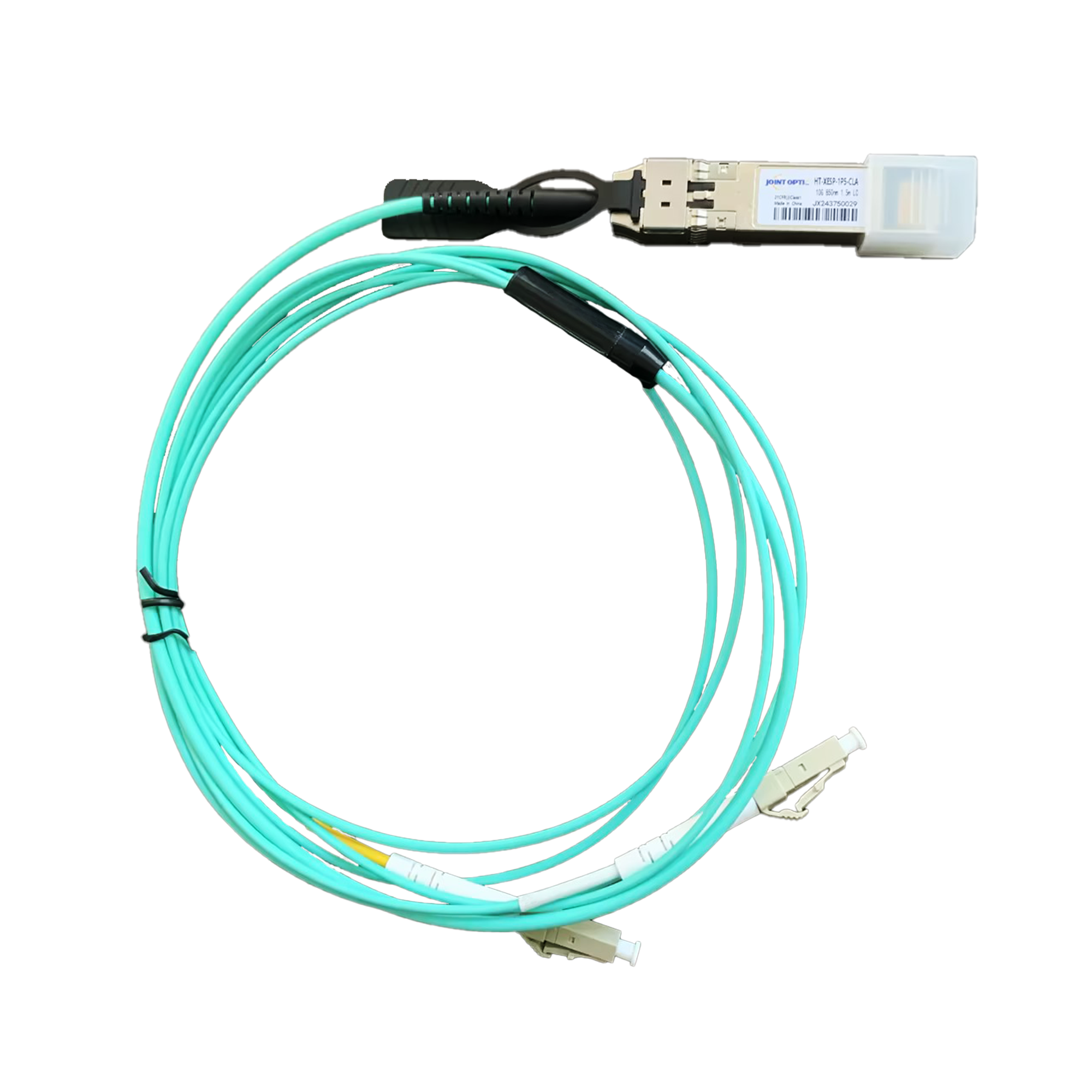

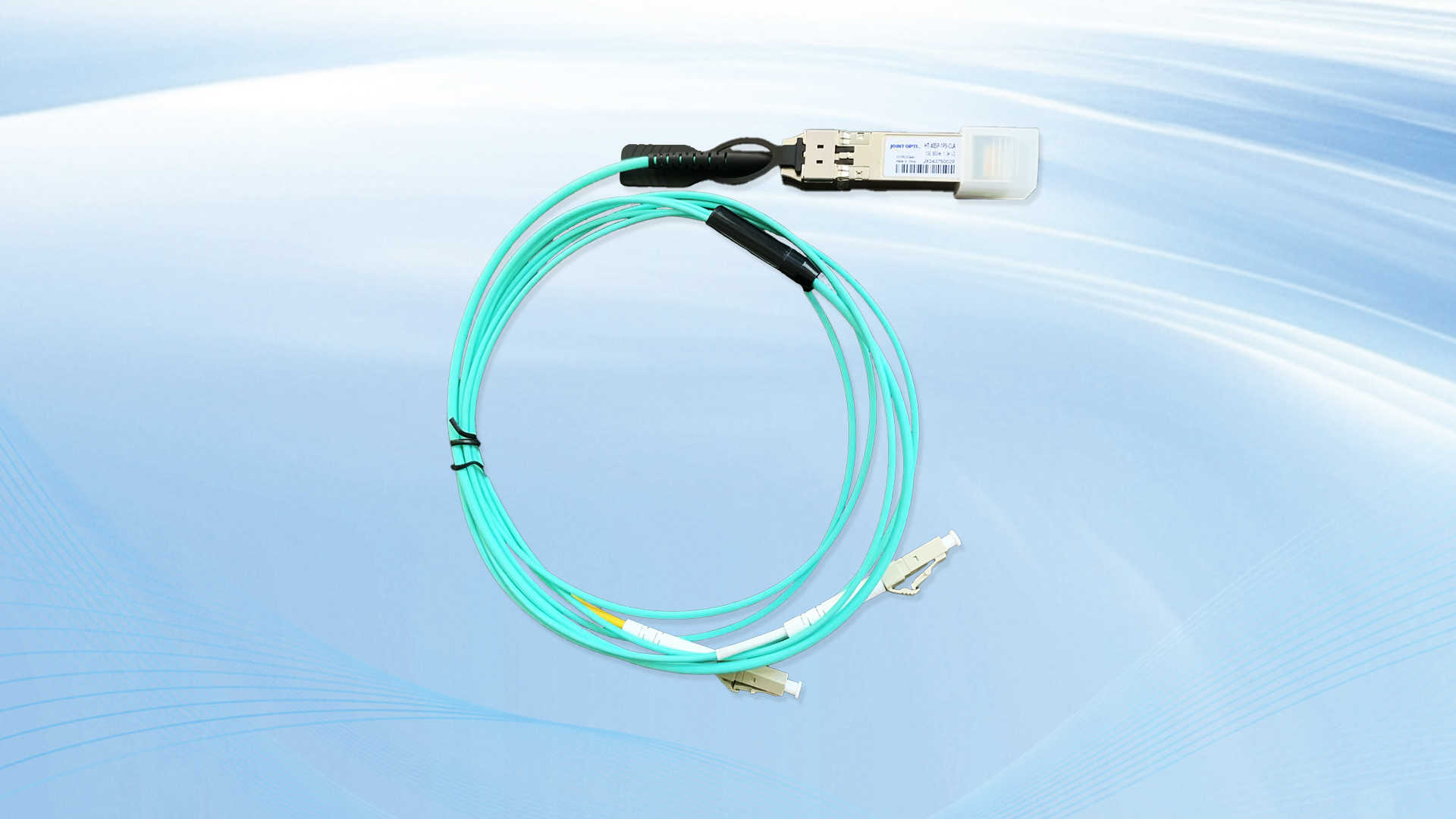

10G SR liquid cooled light module features

Function

Supports bit rates up to 10Gbps, 850nm VCSEL laser and PIN photodetector, equipped with custom 50/125 µ m MMF tail fiber

Introduction
Browsing History

型号	产品名称	Wavelength	Fiber Type	Connector Type	Reach	Operating Temp	备注（货期3-4wks）

HT-XESP-5-CLA	10G SR 液冷单端默认尾纤5米	850nm	MMF	Dual LC	300m	0-60℃	*Tail fiber length exceeding+2 yuan per meter (HT-XESP - - CLA, where * represents tail fiber length in meters)**

10G SR liquid cooled light module features

Specification parameters

⚫ Supports up to 10Gbps bit rates
⚫ 850nm VCSEL Laser and PIN photo-detector
⚫ With customized 50/125µm MMF pigtail
⚫ Duplex LC receptacle optical interface compliant
⚫ Hot pluggable/Low power consumption
⚫ RoHS6 compliant (lead free)
⚫ All-metal housing for superior EMI performance
⚫ Operating case temperature: Commercial: 0ºC to +60°C
⚫ Immersible for liquid-cooling system
