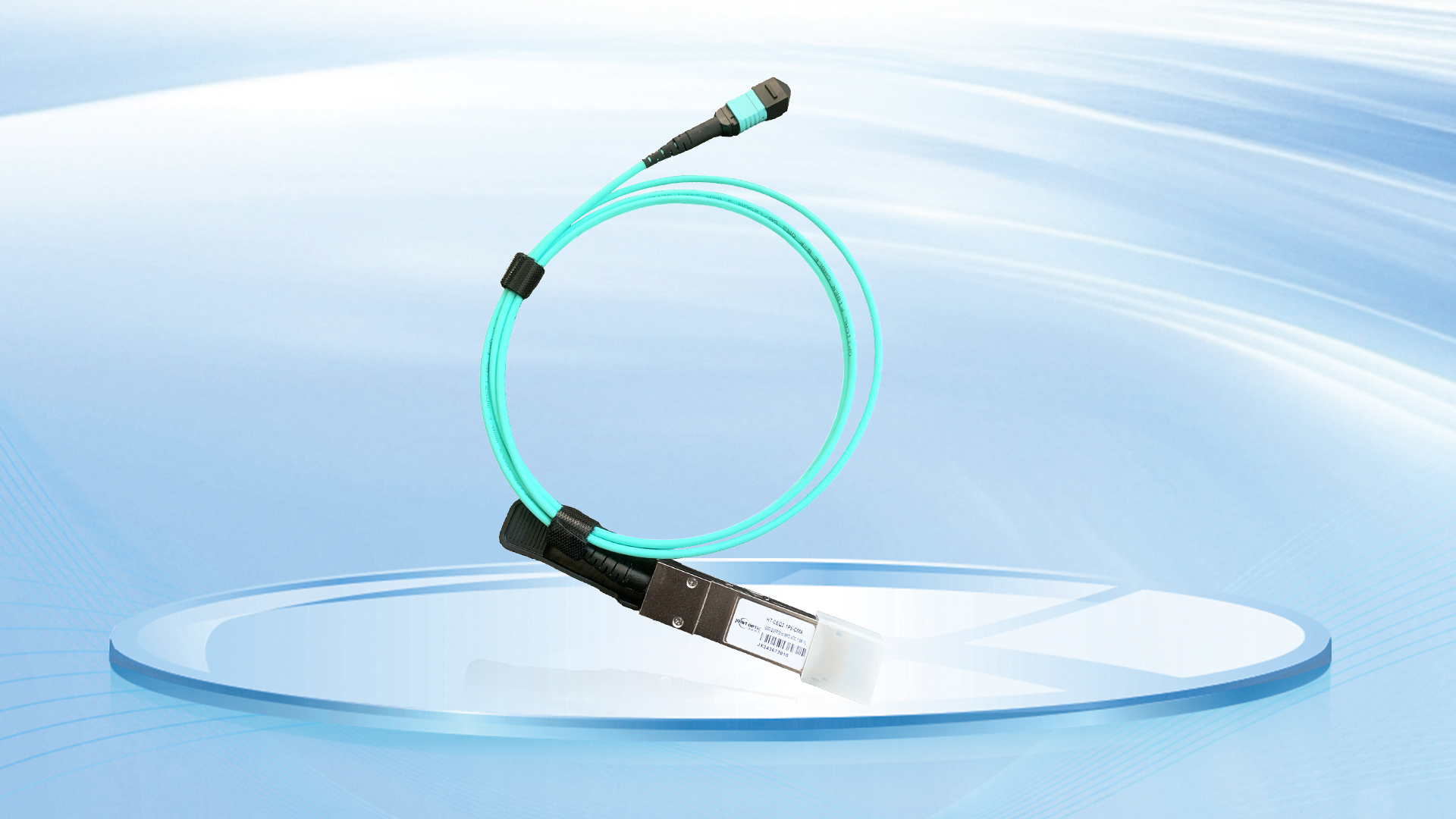

HT-CEQ2-5-CMA Liquid-cooled optical module 100G QSFP28 SR4 liquid cooled light module features

Function

Each channel has a data rate of up to 25.78125Gbps, with an OM4 MMF transmission distance of up to 100 meters and a 4-channel 850nm VCSEL array

Contact Us Online consultation

Introduction
Browsing History

Each channel has a data rate of up to 25.78125Gbps, with an OM4 MMF transmission distance of up to 100 meters and a 4-channel 850nm VCSEL array

HT-CEQ2-5-CMA Liquid-cooled optical module

HT-CEQ2-5-CMA Liquid-cooled optical module

HT-CEQ2-5-CMA Liquid-cooled optical module

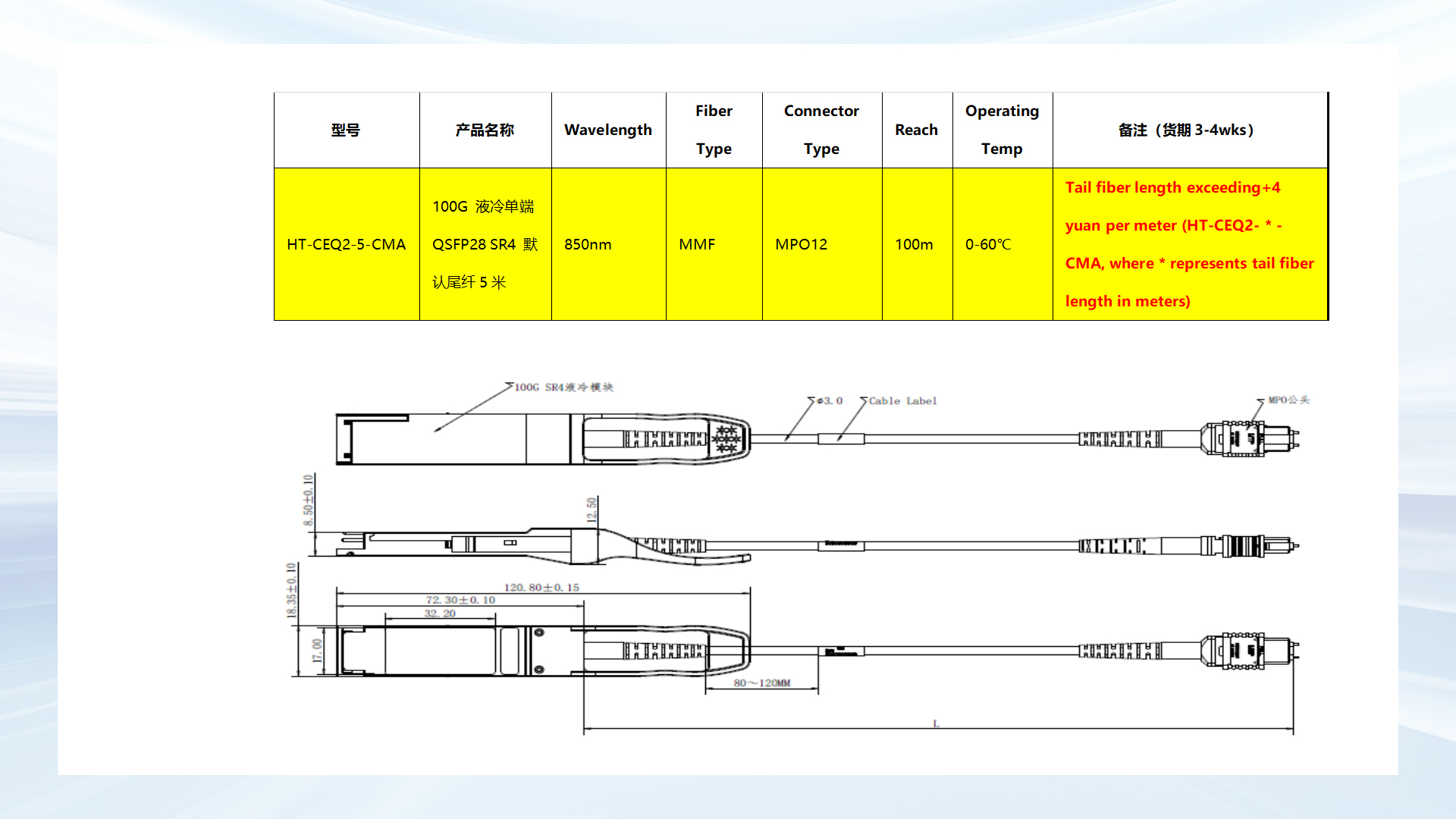

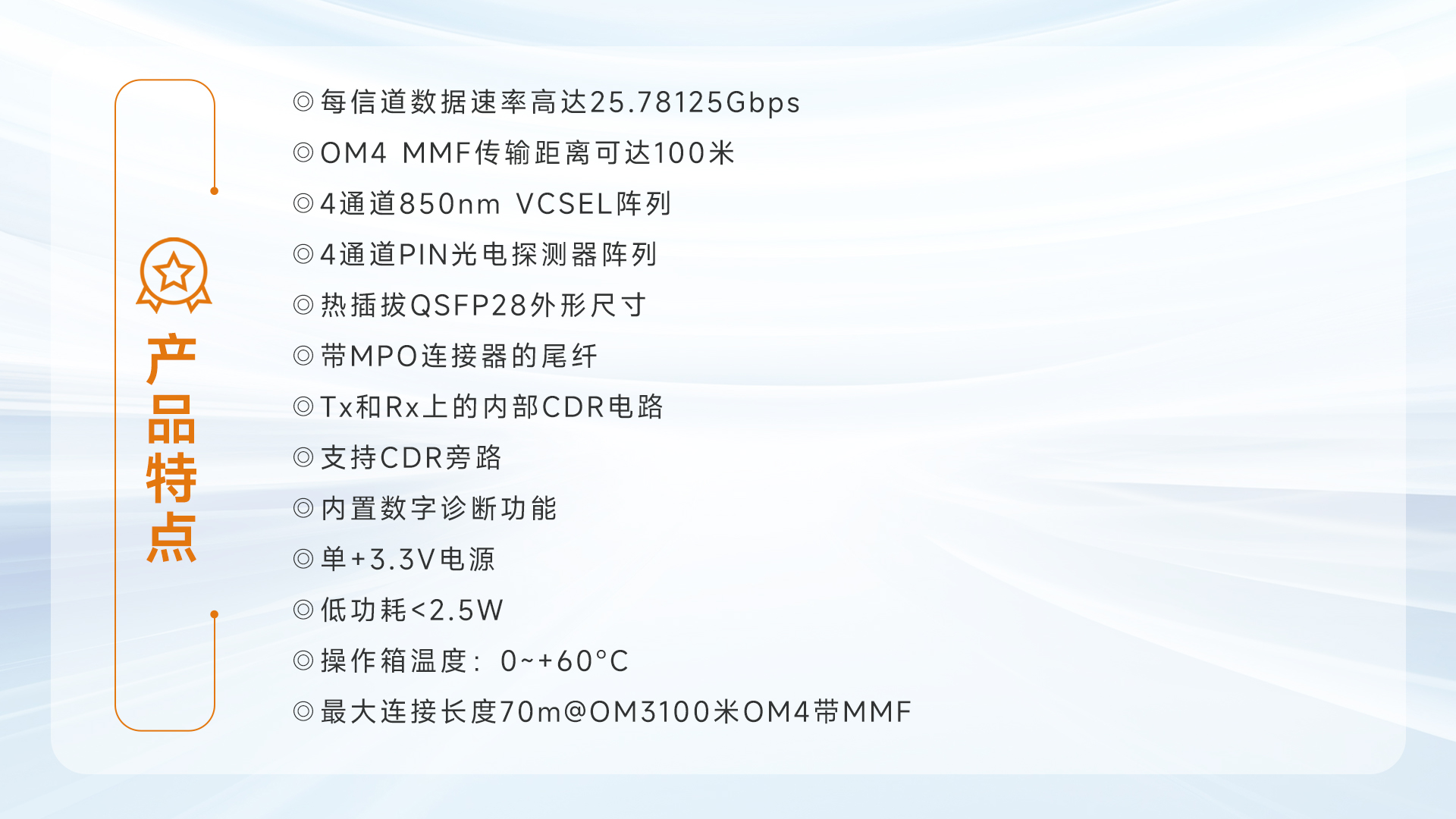

Specification parameters

◎ Up to 25.78125Gbps Data rate per channel
◎ Up to 100m transmission on OM4 MMF
◎ 4 channels 850nm VCSEL array
◎ 4 channels PIN photo detector array
◎ Hot-pluggable QSFP28 form factor
◎ Pigtail with MPO connector
◎ Internal CDR circuits on both Tx and Rx
◎ Support CDR bypass
◎ Built-in digital diagnostic functions
◎ Single +3.3V power supply
◎ Low power consumption<2.5 W
◎ Operating case temperature: 0~+60°C
◎ Max Link Length 70m@OM3 and 100m OM4 with MMF
